[Pw_forum] V_tot potential curve of vdw-DF is not smooth away from nuclei

[PJ Ren]

Dear all,
I have drawn the V_tot potential curve of vdw-DF and found that it is
not smooth away from nuclei as expect. I also test LDA and PBE
functional with same psudo potential and same parameters, no such
phenomenon was found. I don't know whether it is a problem of vdw-DF or
the method implemented in QE?

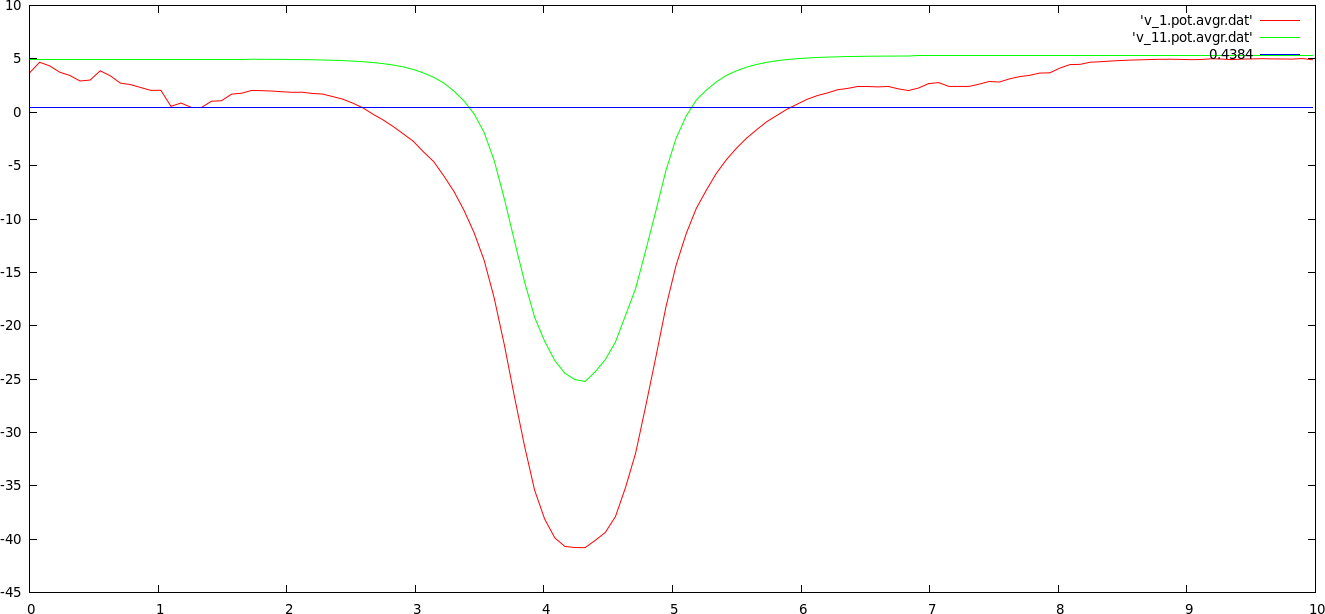

The picture is attached which is V_tot and V_bare curve for carbon nanotube.

Thanks.

Pengju Ren
-------------- next part --------------
A non-text attachment was scrubbed...
Name: plot.png
Type: image/png
Size: 36487 bytes
Desc: not available
Url : http://www.democritos.it/pipermail/pw_forum/attachments/20120504/ae4dc713/attachment-0001.png
