Dear all,


I am trying to calculate the work function for Cu(100) surface with and without
bulk reference. The equations used are as follows:

work function w/o bulkref  -->  wf1 = Vvac - EF,slab
work function with bulkref  -->  wf2 = Vvac - Vslab,int + Vbulk,macro - EF,bulk

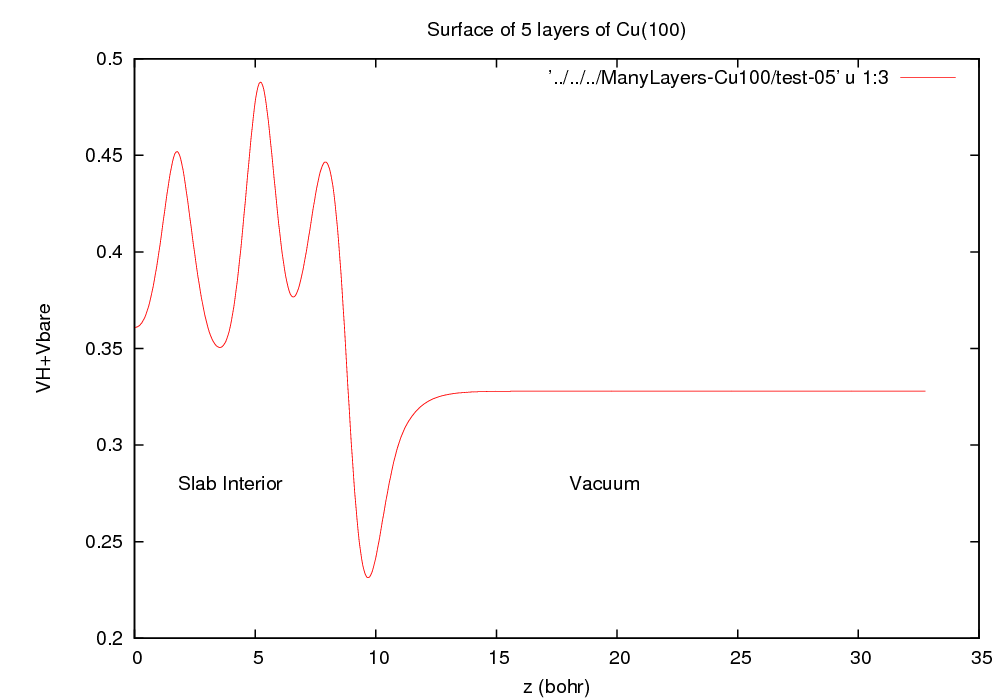

The problem is that the macroscopic average of VH+Vbare for the slab is
oscillating as a function of z (see 05.png). I do not understand why the
macroscopic average is oscillating. We want to see the convergence of the work
function with the number of atomic layers in the slab. Due to the oscillation in
macroscopic average,  the work function dramatically changes when we go from 5
to 6 layers (4.86641 eV to 3.62728 eV, respectively). This makes it hard to see
the convergence of wf with number of layers.

Would it be correct to use the average of the macroscopic average of the peaks
and troughs in calculating wf2? Even if we calculate the average of upper
oscillations (05.png), I don't know what to do with the trough that comes up
just before the vacuum region?


Thank you for any help.

--
Izaak Williamson
Research Assistant
Physics Department
Boise State University
-------------- next part --------------
An HTML attachment was scrubbed...
URL: http://www.democritos.it/pipermail/pw_forum/attachments/20110429/1496c877/attachment-0001.htm
-------------- next part --------------
A non-text attachment was scrubbed...
Name: 05.png
Type: image/png
Size: 22521 bytes
Desc: not available
Url : http://www.democritos.it/pipermail/pw_forum/attachments/20110429/1496c877/attachment-0002.png
-------------- next part --------------
A non-text attachment was scrubbed...

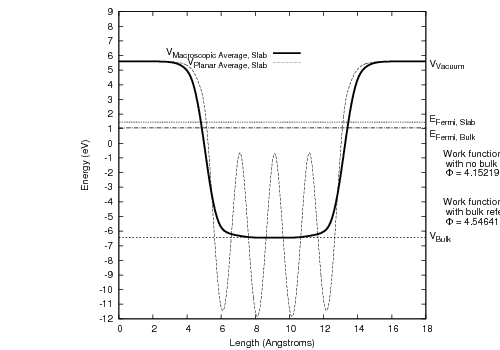

Name: Al100.wf.png
Type: image/png
Size: 17376 bytes
Desc: not available
Url : http://www.democritos.it/pipermail/pw_forum/attachments/20110429/1496c877/attachment-0003.png
